REF. 5144ANSI Categories Butterfly valves, Cast iron, MT, Valves and filters

Butterfly Valve Lug Type, ANSI Flanged, Stainless Steel Disc, NBR Soft Seat

∙ Ductile Iron body GGG40 with ∙ Epoxy coating paint RAL5013 ∙ Stainless Steel disc AISI 316 (ASTM A276) ∙ Prepared for flange according to ANSI B16.5: Class 150 ∙ Face to face according to EN-558-1 (series 20) ∙ Direct Mounting Pad ISO 5211 ∙ NBR shore 70 disc seat according to EN-681

Reference	Measures	Weight (KG)	Small / Large box
5144ANSI050	BUTTERFLY VALVE LUG TYPE S.S. DISC AISI B16.5 150 CLASS NBR	3.5	1 / 1
5144ANSI065	BUTTERFLY VALVE LUG TYPE S.S. DISC AISI B16.5 150 CLASS NBR	3.75	1 / 1
5144ANSI080	BUTTERFLY VALVE LUG TYPE S.S. DISC AISI B16.5 150 CLASS NBR	4.5	1 / 1
5144ANSI100	BUTTERFLY VALVE LUG TYPE S.S. DISC AISI B16.5 150 CLASS NBR	5.2	1 / 1
5144ANSI125	VALV. MARIPOSA LUG DISCO INOX. ANSI B16.5 CLASE 150 NBR 5"	9.5	1 / 1
5144ANSI150	BUTTERFLY VALVE LUG TYPE S.S. DISC AISI B16.5 150 CLASS NBR	11.1	1 / 1
5144ANSI200	VALV. MARIPOSA LUG DISCO INOX. ANSI B16.5 CLASE 150 NBR 8"	16.8	1 / 1
5144ANSI250MR	VALV. MARIPOSA LUG DISCO INOX ANSI B16.5 150 NBR REDUC. 10"	37	1 / 1
5144ANSI300MR	VALV. MARIPOSA LUG DISCO INOX ANSI B16.5 150 NBR REDUC. 12"	52.8	1 / 1

Related PRODUCTS

Set of 4 units: Zinc-plated bolts 8.8 DIN 931 M16 + Nuts + Washers

Set of 4 units: Zinc-Plated Bolts 8.8 DIN 931 M20 + Nuts + Washers

Butterfly Valve Lug Type, EN-1092 Flanged, Stainless Steel Disc, EPDM Seat Disc

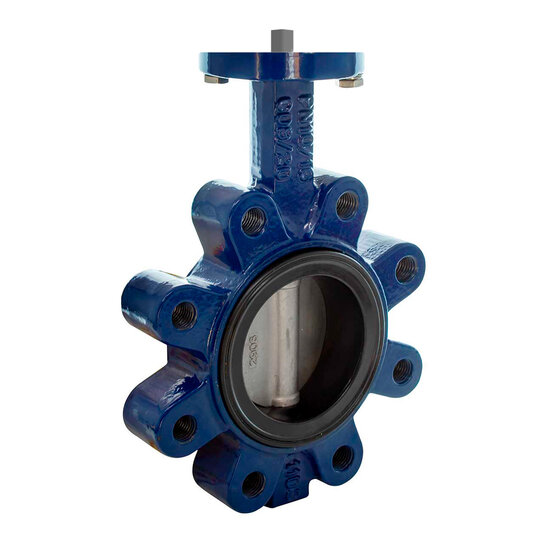

Butterfly Valve Free Stem Lug Type, EN-1092 Flanged, Stainless Steel Disc, EPDM Seat Disc
