REF. 5114 Categories Butterfly valves, Cast iron, MT, Valves and filters

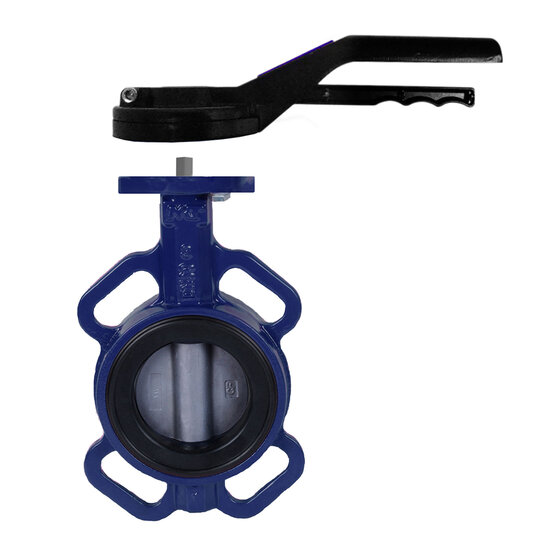

Butterfly Valve Wafer Type, Stainless Steel A-316 Disc, Universal Flanged, EPDM Soft Seat

Wafer type butterfly valve with universal flange, A-316 stainless steel disc and EPDM soft seat. Manufactured in GGG-40 cast iron with RAL5013 epoxy paint coating and flange in accordance with UNE-EN-1092 (PN6/10/16) and ANSI B16.5 class 125/150. The butterfly valve is used to partially or completely shut off the flow of a fluid. It withstands a maximum working pressure of 16 bar and can operate at temperatures from -20 to 120°C. Model 5114 is ideal for use in air conditioning, ventilation, heating, water treatment and distribution, fire-fighting systems, irrigation systems, chemical, pharmaceutical and mining industries. MT cast iron valves are designed and manufactured in accordance with EN 593, testing and inspection in accordance with EN 12266-1, face-to-face distance in accordance with EN 558 (20 series) and ISO 5211 direct mounting pad. They can be installed both horizontally and vertically. MT Industrial Division products are high-quality parts, specifically designed for industrial contexts. The entire range is manufactured under strict quality parameters and complies with the highest certifications in fluid handling.

Ductile Iron body GGG-40 with
Epoxy coating paint RAL5013
Stainless Steel disc AISI 316 (ASTM A276)
Prepared for flange according to ANSI 150, DIN 2576- 2502 and EN-1092 (PN6-PN10-PN16)
Face to face according to EN-558-1 (series 20)
Direct Mounting Pad ISO 5211
NBR shore 70disc seat according to EN-681
Working Temperature: -10 to 120°C
Maximum Working Pressure: 1 ½” – 6”: 300 PSI / 20bar 8” – 12”: 250 PSI / 16bar 14” – 24”: 150 PSI / 10bar

Reference	Measures	Weight (KG)	Small / Large box
5114040	BUTTERFLY VALVE WAFER TYPE UNIVER.FLANGED S.S. DISC EPDM 11/	2.2	1 / 1
5114050	BUTTERFLY VALVE WAFER TYPE UNIVER.FLANGED S.S. DISC EPDM 2"	2.7	1 / 1
5114065	BUTTERFLY VALVE WAFER TYPE UNIVER.FLANGED S.S. DISC EPDM 2 1	3.2	1 / 1
5114080	BUTTERFLY VALVE WAFER TYPE UNIVER.FLANGED S.S. DISC EPDM 3"	3.75	1 / 1
5114100	BUTTERFLY VALVE WAFER TYPE UNIVER.FLANGED S.S. DISC EPDM 4"	5.1	1 / 1
5114125	BUTTERFLY VALVE WAFER TYPE UNIVER.FLANGED S.S. DISC EPDM 5"	7.3	1 / 1
5114150	BUTTERFLY VALVE WAFER TYPE UNIVER.FLANGED S.S. DISC EPDM 6"	7.15	1 / 1
5114200	BUTTERFLY VALVE WAFER TYPE UNIVER.FLANGED S.S. DISC EPDM 8"	14	1 / 1
5114250	BUTTERFLY VALVE WAFER TYPE UNIVER.FLANGED S.S. DISC EPDM 10"	17	1 / 1
5114300	BUTTERFLY VALVE WAFER TYPE UNIVER.FLANGED S.S. DISC EPDM 12"	22	1 / 1
